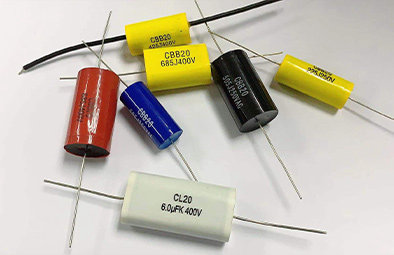

CBB20/CL20

采用标准   Reference Standard

GB10190 （IEC384-16）

结构   Structures

介质：聚丙烯膜.Material:Polypropylene film

电级：金属真空蒸发层。

Electrode:Metallized Vacuum Evaporated Layer

封装：PET胶带包裹；两端助燃环氧树脂封装。

          符合UL94 V-0.

Encapsulation:Wrap up with PET tape and

Encapsulated with passive flammability epoxy resin

形状：圆柱形或椭圆柱形.Shape:Cylinder or Elliptic

引脚：镀锡铜包钢线（CP线）或电子线.

Pin:cp Leads or PVC Electronic Tread

典型应用   Using area

滤波及脉冲大电流场合。

如：功放、焊机等

可使用在CBB21的所有场合。

In Heavy Current such as Filterinng and

Impulse,e.g.Power Amplifiers and

welder Machines etc

Could be used in all the CBB21 compliant conditions.

特点   Features：

体积小，有良好自愈性；高频损耗小，温升低；

高冲击强度；高频交流条件下有良好的耐压性能。

Small Size with good self-healin effect ,Very low loss

at high frequency could bear the high currents'impactive.

Have well voltage proof features under the high frequency

AC current.
